Baumkuchen ovenintroduction

Good taste, easy operation, high performance, wide expandability,
these are our know how accumulated in our history more than 50 years.

A special feature of Fuji Shokai’s oven is having patented upper and lower shutter mechanism.

A special feature of Fuji Shokai’s oven is having patented upper and lower shutter mechanism.

  • It can make moisture and soft Baumkuchen keeping high temperature inside of furnace closing upper and lower shutters.
  • The circumstance of baking operator can maintain in good condition since the shutters shut off heat from oven.
  • It is also saving energy keeping heat in side of furnace.

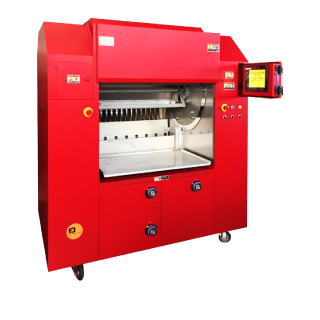

TT Series triple touch panel was launched.

TT Series triple touch panel was launched.

The Banmkuchen oven standard model 3-6 sticks baking has been evolved.

Add touch panel

Gather all the information on the screen.
Neat looking removed switches both left and right side of the oven.
Easy software update, the software can be renewed for new functions in the future.

Three kinds of baking mode.

Three kinds of baking mode.

Many kinds of Baumkuchen can be baked by pushing baking mode change switch on the touch panel.

  • ・The first Baumkuchen “Soft Kuchen”
  • ・The second Baumkuchen “Hard Kuchen”
  • ・The third Baumkuchen “Foursec Kuchen”

User needs to buy foursec pump to operate the third kuchen baking mode. The two modes, the forest kuchen and the second kuchen are set at the oven before user buys pump. We release and add the third kuchen baking mode at the operation instruction after users buys pump.

Gas heating oven FIND Series.

<One baking stick model><One baking stick model>
Model Name:
FIND-1 TWIN
Size of oven:
W1300×D950×H1570
Electric capacity:
3phase 200V 0.4kW
Gas capacity:
24,000kcal
Oven weight:
350kg
Size of baked Bamukuchen:
Maximum 20cm diameter X 1 baking stick.
Standard set:
φ50mm baking stick: 2 sticks/Bamukuchen stand : 1 set/Ingredient Operation Bar : 1 pc

This model can bake the first Baumkuchen and the second Baumkuchen.
*FIND-1 can bake only the first Baumkuchen

<3 or 6 sticks baking model><3 or 6 sticks baking model>

This model can bake all the bamukuchen proposed by Fuji Shokai as our standard type.

Model Name:
FINDS 3-6 TT
Size of oven:
W1500×D1180×H1800
Electric capacity:
3phase 200V 0.8kW
Gas capacity:
43,000kcal
Oven weight:
900kg
Size of baked Bamukuchen:
Maximum 20cm diameter X 3 baking stick.
        Maximum 14cm diameter X 6 baking stick.
Standard set:
φ50mm baking stick: 6 sticks/Rack for sticks ×1/Bamukuchen stand : 1 set/Ingredient Operation Bar : 1 pc

*The mode can bake only the first Baumkuchen

<6 or 12 sticks baking model><6 or 12 sticks baking model>
Model Name:
FINDS 6-12
Size of oven:
W1600×D1490×H1990
Electric capacity:
3phase 200V 1.2kW
Gas capacity:
43,000kcal
Oven weight:
1000kg
Size of baked Bamukuchen:
Maximum 20cm diameter X 6 baking stick.
        Maximum 12cm diameter X 12 baking stick.
Standard set:
φ50mm baking stick: 12 sticks/Rack for sticks ×1/Bamukuchen stand : 1 set/Ingredient Operation Bar : 1 pc

*This model can bake only the first Baumkuchen

Electric heating type oven FEK Series

This is the challenged model for new stage, can not reach by gas heating type oven.

It is difficult or makes quality down in case Baumkuchen oven not heating by gas. Since the Baumkuchen is baked by the heat with the exquisite balance in side of the oven furnace, which is different from the sweets baked by the heat transfer from flat steel plate
On the other hand, there are the cases gas heating oven can not be used, such as the case that gas usage is prohibited at tenant shops, or the cases the different standard of governmental safety regulation for gas operating machine at the overseas country.
Our company’s Premise is not to decreasing quality of the Baumkuchen. The electric heating type oven was born by our research and development in several years.

<One baking stick model><One baking stick model>
Model Name:
FEK-1
Size of oven:
W1300×D950×H1570
Electric capacity:
3phase 200V 0.4kW
Gas capacity:
Not use
Oven weight:
400kg
Size of baked Bamukuchen:
Maximum 20cm diameter X 1 baking stick.
Standard set:
φ50mm baking stick: 2 sticks/Bamukuchen stand : 1 set/Ingredient Operation Bar : 1 pc

*This oven can bake only the first kuchen

Newly launched electric heating 3-6 model

The single baking bar type oven was developed as electric heating oven. It has another story than our flagship model 3-6 series. This model has completed after We have subdivided each commitment, the circumstance of ingredient rolling up, how the heat is kept inside of furnace, how the fire affecting, position and specification of the heaters, etc. Then finally this model has developed by such hypothesis verification repeatedly.We have realized triple mode baking by touch panel as same as the gas heating oven, now the electric heating oven can bake the Baumkuchen in same level of quality and same products line up.

*Baumkuchen itself is not same even made from same blending ingredient in case user used electric heating oven and the case of gas heating oven.
Since the heat entering characteristics are not same between gas heating and electric heating. There is the suitable blending of ingredients and baking operation for gas heating and the ones good for electric heating each. (this does not mean the differences of taste, moisture level of Baumkuchen)

As above, we do not recommend that the sales of Baumkuchen products both baked by electric heating oven and by gas heating oven as same product item.

<3 or 6 sticks baking model><3 or 6 sticks baking model>

This is the standard baumkuchen oven which can bake all type of baumkuchen Fuji Shokai proposes.

Model Name:
FEK 3-6 TT
Size of oven:
W1500×D1180×H1800
Electric capacity:
3phase 200V 23.5kW
Gas capacity:
Not use
Oven weight:
740kg
Size of baked Bamukuchen:
Maximum 20cm diameter X 3 baking stick.
        Maximum 14cm diameter X 6 baking stick.
Standard set:
φ50mm baking stick: 6 sticks/Rack for sticks ×1/Bamukuchen stand : 1 set/Ingredient Operation Bar : 1 pc

Order made products

Order made productsOrder made products

We support our customer for their request to show stronger performance power from the specialty of the Baumkuchen with our sincerity and our proud., for example “we want to make such a special oven”, or “we would like to have such additional function”,

  • ・Change the color valuation
  • ・Putting the logo sign
  • ・Additional function

Inquiry

Please feel free to contact us if you have any questions about purchasing confectionary/bakery machines, starting a new sweets shop, maintenance machines, inquiry of baumkuchen business and equipments!
*English speaking staff is Not always in our office, so we recommend inquiry by e-mail at the first contact.
